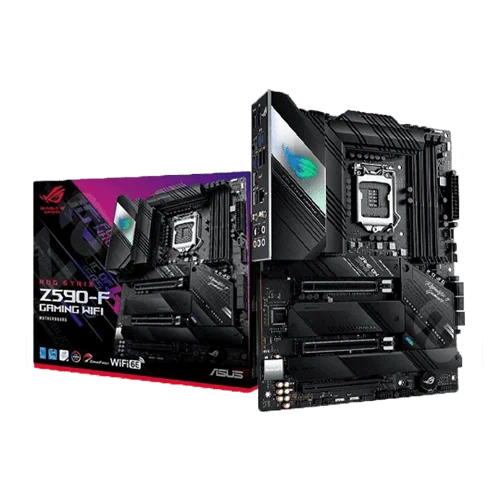

Asus ROG STRIX Z590-F GAMING WIFI

אחריות: 3 שנים

זמן אספקה: עד 3 ימי עסקים

מחיר משלוח: 40 ₪ (ליחידה)

1,350 ₪

אזל המלאי

CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU


Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Z590

Memory

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports Intel® Extreme Memory Profile (XMP)


OptiMem II


* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.


* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.


* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

* Graphics specifications may vary between CPU types.


"** For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update.


Please refer to www.intel.com for any update. "


*** For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.


**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors


2 x PCIe 4.0/3.0 x16 slot(s)*


- Intel® 11th support PCIe 4.0 x16 or x8/x4 mode(s)


- Intel® 10th processors support PCIe 3.0 x16 or x8/x4 mode(s)


Intel® Z590 Chipset


1 x PCIe 3.0 x16 slot (supports x4 mode)*


* Support PCIe bandwidth bifurcation for RAID on CPU function.

Storage

Intel®11th &10th Gen Processors*


M.2_1 slot (Key M), type 2242/2260/2280/22110


- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs


M.2_2 slot (Key M), type 2242/2260/2280/22110


- Intel® 11th processors support PCIe 4.0 x4 mode


- Intel® 10th processors support PCIe 3.0 x4 mode


Intel® Z590 Chipset


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)


M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*


6 x SATA 6Gb/s ports


Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.


To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.


*When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.

Ethernet

1 x Intel® 2.5Gb Ethernet

Wireless & Bluetooth

2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2

USB

Rear USB:
Total 10 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)


3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)



Front USB:
Total 7 ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Audio Features


- SupremeFX Shielding Technology


- ALC4080 + Savitech SV3H712 AMP


- Gold-plated audio jacks


- Rear optical S/PDIF out port


- Premium Japanese audio capacitors


- Audio cover

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)


3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® )


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


1 x HDMI™ port


1 x DisplayPort


1 x Intel® Wi-Fi 6E


1 x Intel® I225-V 2.5Gb Ethernet


5 x Gold-plated audio jacks


1 x Optical S/PDIF out port


1 x BIOS FlashBack™ button


1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


3 x 4-pin Chassis Fan headers


1 x VRM heatsink Fan header


1 x W_PUMP+ header


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


1 x 4-pin +12V Power connector


Storage related


4 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2 connector (supports USB Type-C®)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x AURA Addressable Gen 2 headers


1 x AURA RGB header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 x Thunderbolt header

Software Features

ROG Exclusive Software


- RAMCache III


- ROG CPU-Z


- GameFirst VI


- Sonic Studio III + Sonic Studio Virtual Mixer


- Sonic Radar III


- DTS® Sound Unbound


- Overwolf


- Anti-virus software


- AIDA64 Extreme (60 days free trial)


ASUS Exclusive Software


Armoury Crate


- AURA Creator


- AURA Sync


- Two-Way AI Noise Cancelation


AI Suite 3


- 5-Way Optimization with AI Overclocking


TPU


EPU


DIGI+ VRM


Fan Xpert 4


Turbo app


- EZ update


DAEMON Tools


MyAsus


WinRAR


UEFI BIOS


AI Overclocking Guide


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


FlexKey


MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables


4 x SATA 6Gb/s cables


Additional Cooling Kit


1 x Fan holder


Miscellaneous


1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas


1 x M.2 Q-Latch package


2 x M.2 Rubber Packages


1 x ROG key chain


1 x cable tie


1 x ROG STRIX stickers


1 x ROG STRIX thank you card


Installation Media


1 x Support DVD


Documentation


1 x User manual

Operating System

Windows 10 64bit

Form Factor

ATX
30.5cm x 24.4cm
